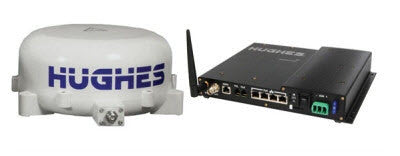

HUGHES 9450-C11 BGAN Mobile Satellite Terminal GSA

The Hughes 9450-C11 is a budget-friendly and highly competitive mobile terminal, ideal for government, first responders, public safety, mobile health care, and remote mobile fleet personnel in industries such as utility, oil and gas, forestry, cable, and telecommunications.

Smallest Class11 BGAN tracking antenna available. Customers can now connect at IP broadband speeds of up to 464 kbps while on-the-move using the world's smallest mobile BGAN terminal - the Hughes 9450-C11. The Hughes 9450-C11 terminal is fully approved for operation on Inmarsat's Broadband Global Area Network (BGAN) satellite service and provides high-performance, on-the-move connectivity for the most demanding environments. Simple, quick, and flexible options are available for installation on any vehicle. The mini-antenna may be permanently mounted for fleet-style installation or the optional magnetic roof mount can be used for rapid installation and removal. The antenna includes a single, 8 meter RF cable connection. The Hughes 9450-C11 terminal also has four (4) Ethernet ports with Power over Ethernet (PoE) that allow the user to connect multiple devices. The terminal supports analog and ISDN circuit-switched voice calls, along with fax and 64 kbps ISDN data.

• Hughes 9450 Mobile Satellite Terminal

• Tracking antenna, 8 meter RF cable, and power cable (magnetic mounts are optional) Note: This cable length can be changed, but the maximum loss must be less than <10 dB at 1.6 GHz.

• User Guide and Installation Guide

Overview:

• Fully autonomous tracking antenna acquires and tracks the BGAN satellite signal while on-the-move

• Simultaneous use of Ethernet and WLAN for IP data plus RJ-11 or ISDN for voice

• Internal Web User Interface (UI) for configuration and control without the use of LaunchPad

• Auto context activation feature allows data connections to be activated without user action

• Multi-user capability (up to 11 simultaneous sessions)

• Up to 464 kbps shared data rate and 128 kbps streaming IP

• Circuit-switched services: speech (4 kbps), 3.1 kHz audio (64 kbps), ISDN data (64 kbps) (3.1 kHz audio and 64 kbps ISDN data are network limited to look angles above 45 degrees)
