Pipe mount for Antcom antennas 316 stainless steel construction

Antcom

MTR-2 Pipe mount for Antcom antennas 316 stainless steel construction

$ 69.00

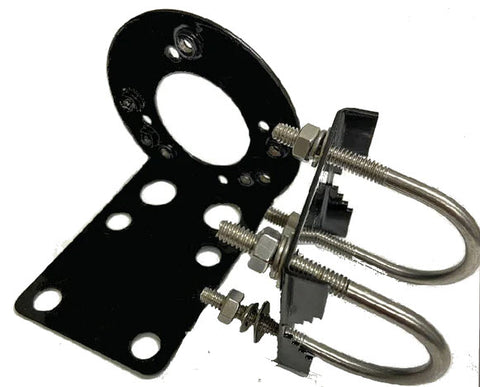

316 all stainless steel antenna mount for Antcom antennas. Can be used for mounting to either vertical or horizontal pipe positions.

Will work on the following pipe outside dimensions (OD):

1.0" diameter pipe, 1.25" diameter pipe, 1.375" diameter pipe and 1.50" diameter pipes.

For the following Antcom antenna series:  2G, 3G, 4G, 5G, 53G, 73G, S2, S3IR , S4IR, S53, S5G

316 Stainless Steel bracket, u-bolts and hardware. Black powder coated finish.

Simular mount, as Antcom part # MTR-2

ECCN: Raw Mat - HTS: 8529104000  - NSN 5985-01-628-8131 - Made in the USA

Mount pictured with Antcom's Iridium helix antenna, to purchase the antenna, click here: P/N S53IR16RR-P-XTB-1



Mount in 'horizontal' position

S53IR16RR-P-XTB-1 antenna with 316 stainless steel Vertical or Horizontal antenna mount MTR-2  h



U bolt bracket can go 0 degrees to 90 degrees

u bolt with various mount pipe sizes MTR-2 Antcom antenna bracket



Mount in vertical position

S53IR16RR-P-XTB-1 antenna with 316 stainless steel Vertical or Horizontal antenna mount MTR-2   v

Antcom antenna mount



316 stainless steel antenna pole mount for Antcom antennas
